Fast and Powerful Large Object 3D Scanning

Combining the Revopoint RANGE 2 portable handheld 3D scanner with the Revopoint Large Turntable makes scanning objects like people, statues, and home decor faster than ever.

The robust Large Turntable design easily supports a maximum load of 200 kg while maintaining a smooth spin at its highest speed.

Say bye-bye to the time you need to circle the objecting while scanning. Stay still, and let the objects spin!

Benefits

• Single-frame Precision: Up to 0.1 mm
• Depth/RGB Camera Resolution: 2 MP
• Scanning Speed: Up to 16 fps
• Working Distance: 400–1300 mm
• Single Capture Area at Furthest Distance: 860 x 1380 mm at 1300 mm
• Scanner Weight: Only 253 g


Content

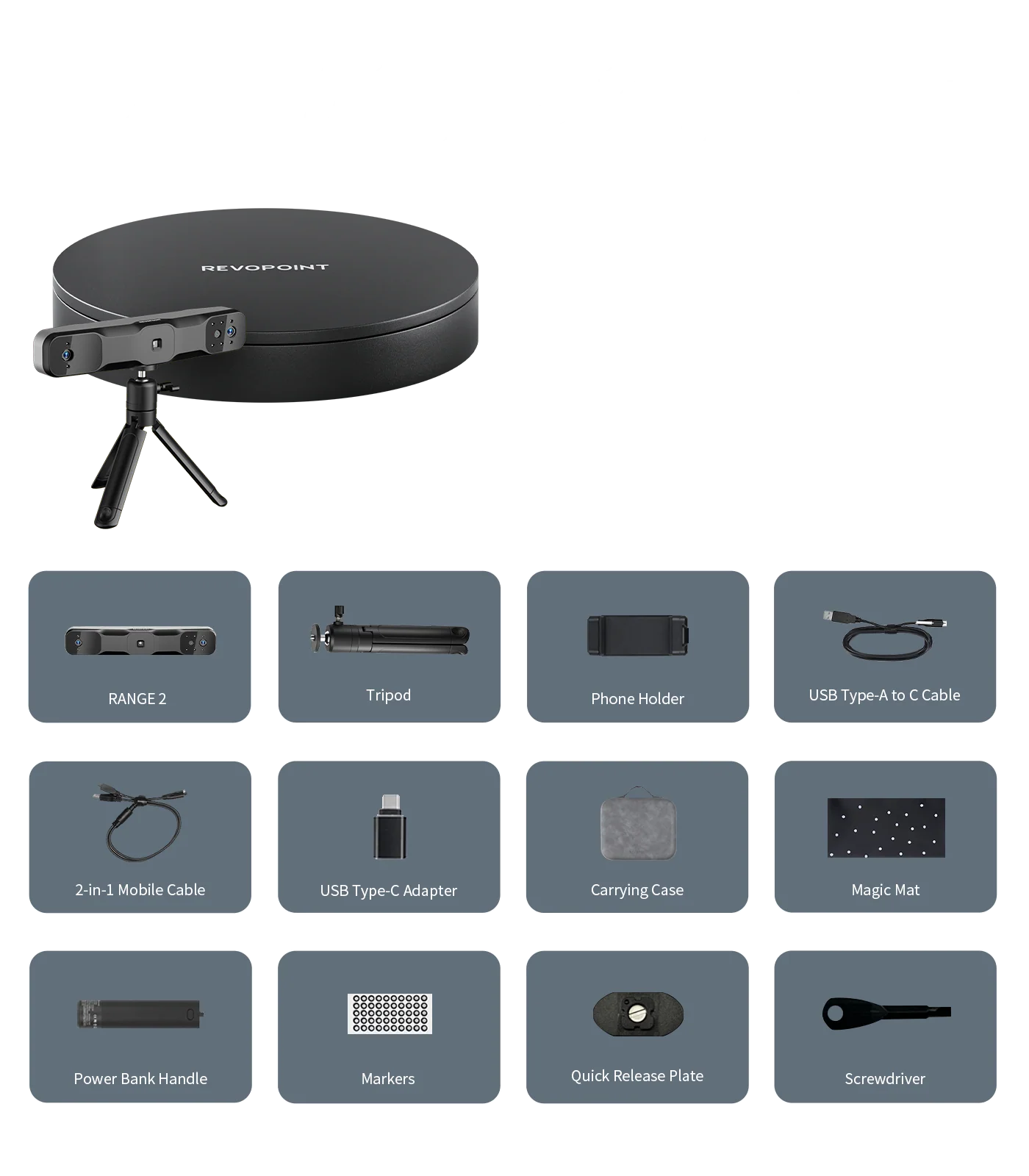

What's in Revopoint Range 3D Scanner Premium Package:

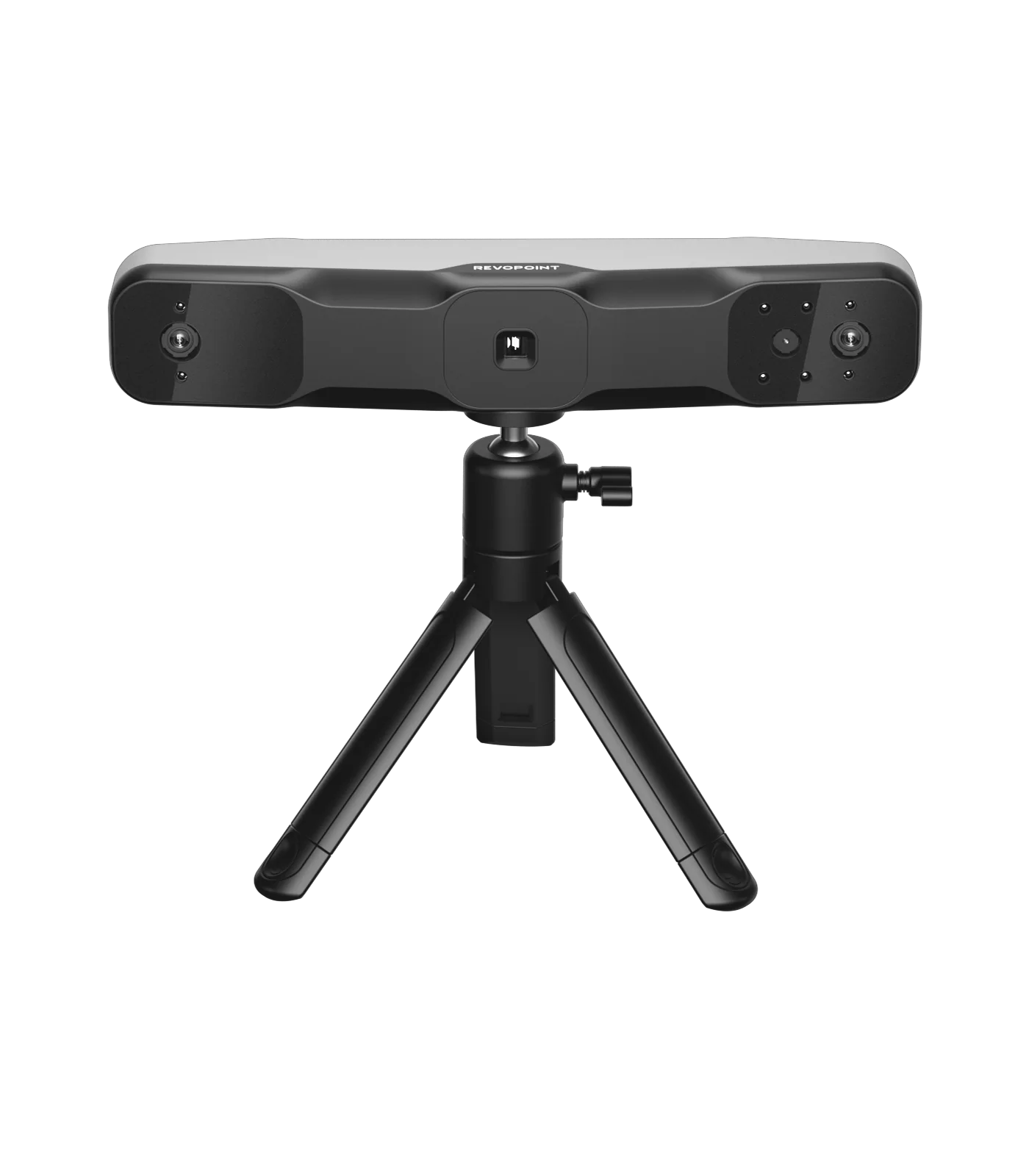

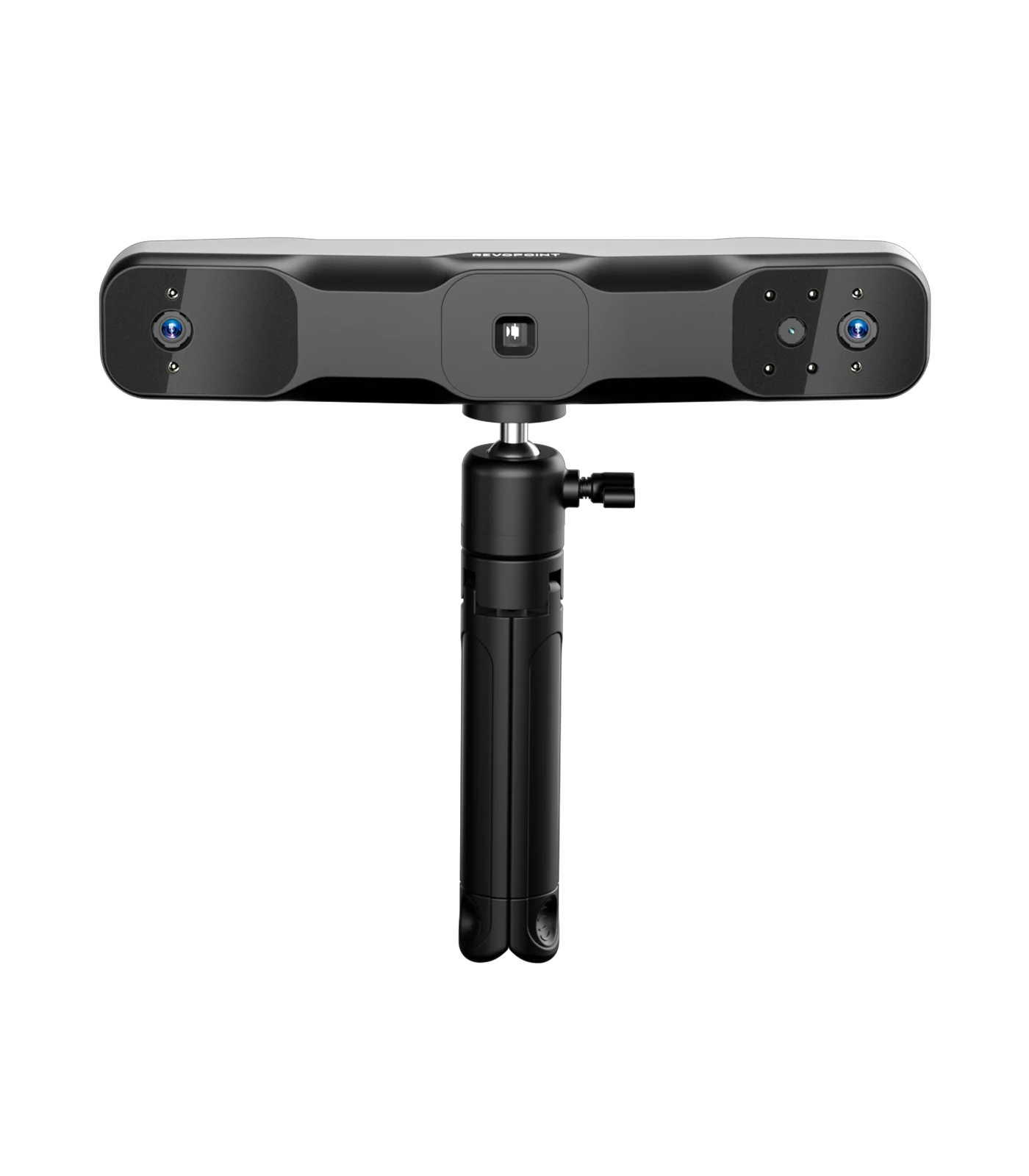

• RANGE 2 3D Scanner x1
• Tripod x1
• Phone Holder x1
• USB Type-A to C Cable x1
• 2-in-1 Mobile Cable x1
• USB Type-C Adapter x1
• Carrying Case x1
• Power Bank Handle x1
• Magic Mat x1
• Markers x1
• Quick Release Plate x1
• Screwdriver x1


Specs:

• Technology: Dual-camera Infrared Structured Light
• Outdoor Scanning: Yes
• Color Scanning: Yes
• Single-frame Precision: Up to 0.1 mm
• Scanner Weight: 253 g
• Single-frame Accuracy: Up to 0.3 mm
• Dimensions (L x W x H): 240 x 43 x 46 mm
• Single Capture Area at Nearest Distance: 220 x 425 mm at 400 mm
• Ready to Print 3D Models: Yes
• Single Capture Area at Furthest Distance: 860 x 1380 mm at 1300 mm
• Compatible Operating Systems: Windows 10/11 (64-bit), Android, iOS, macOS
• Working Distance: 400 - 1300 mm
• External Controls: Three buttons for Start/Pause, Exposure +, -
• Point Distance: Up to 0.1 mm
• Infrared Fill Lights: Yes
• Minimum Scan Volume: 50 × 50 × 50 mm
• White Flash LEDs: Yes
• Scanning Speed: Up to 16 fps
• Output File Formats: PLY, OBJ, and STL
• Position Sensors: 9-axis IMU
• Wi-Fi: Wi-Fi 6
• 3D Light Source: Class 1 Infrared Light
• Connector Type: USB Type-C
• Tracking Methods: Feature/Marker
• Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects.

*Accuracy was acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.

*Precision is how close repeated measurements of the same object are to each other. Accuracy is how close a measured value is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.

*Class 1 Laser: Avoid direct eye exposure for extended periods. (Refer to Standards for Class 1 Lasers for details.)

*Outdoor scans should avoid direct sunlight.

*Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
